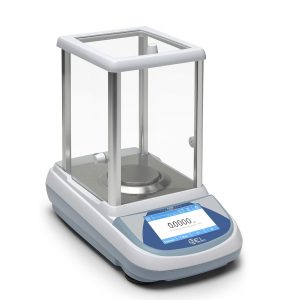

M5-M214A Analytical Balances

Description

Overview

  • Electromagnetic force restoration weighing system
  • Highly integrated weighing cell
  • Automatic internal calibration (only “i” models)
  • 5’’ Touch-screen Display 800×480
  • RS232 serial interface
  • Selectable Measuring units
  • Internal Database
  • GLP
  • Multi Languages (EN-DE-FR-IT-SP-PT)
  • Multi-user with password protection
  • USB port for import/export database data
  • Advanced piece counting function with Statistics report
  • Textile function to measure fibers with Statistics report
  • Advanced Density function, with density index (DI) calculation
  • Formulation (Recipe)
  • Check weighing
  • Percentage weighing
  • Weights adding
  • Animal weighing
  • Max load determination (Peak hold)
  • Large glass draft shield with 3 sliding doors for easy access to the items being weighed

Technical Features

Capacity 220g
Resolution 0,1mg
Calibration External
Pan size Ø 80 mm
Response time (sec.) ≤4
Linearity ± 0,0003g
Repeatibility 0,1mg
Verification N/A
Minimum Load 10 mg
Display TOUCH-SCREEN 5”
Tare Range (Subtractive) 220 g
Span Drift In +10…+30°c ± 3 ppm/°C
Interface RS232
Database Capacity 3000
Windshield Type And Dimensions 3 sliding windows / 162x171x225 mm
Working Temperature 5 – 35°C (15-30°C for verified models)
Power Supply 110-230Vac. 50/60Hz, output 24V 500mA 13VA
Power Consumption (Max) 2 Watt
Calibrates With (Class) 200 g (E2)
Balance Dimensions (W X L X H) 215 x 345 x 345 mm
Net Weight / Gross Weight, Approx. 6,3 / 8,9 Kg
Package Size (W X L X H) 390 x 520 x 630 mm
